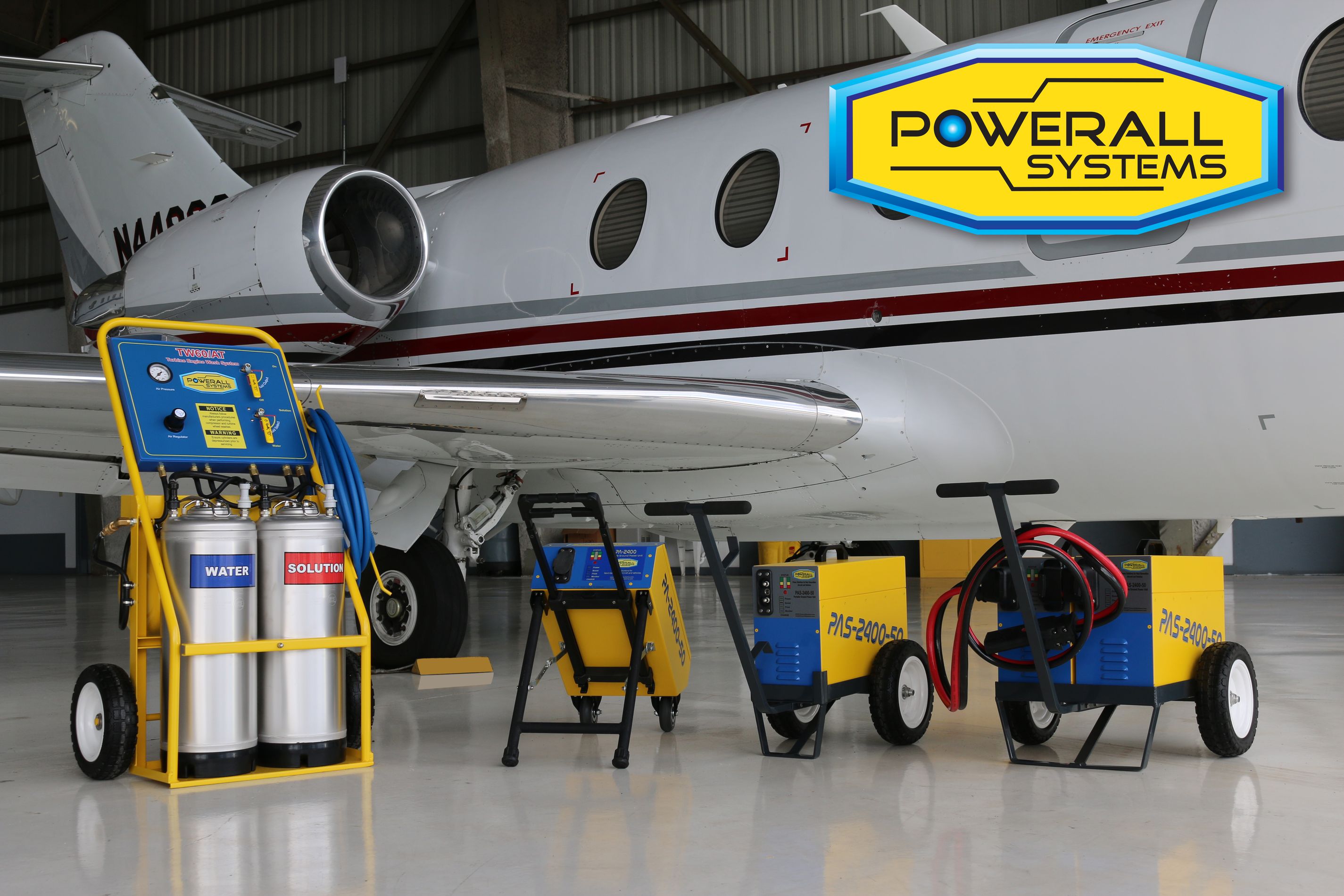

Our Selection of High-Quality Ground Support Equipment
At PowerAll Systems, LLC, we are committed to manufacturing superior ground support equipment for turbine-powered aircraft and helicopters worldwide. Our top-notch products are professionally designed to support real-world ground maintenance operations while offering dependable quality at a fraction of the cost of many competitors.
Products
Turbine Engine Wash Systems (TEWS)
PowerAll Systems, LLC exclusively manufactures the TW60 and TW60AT Turbine Engine Wash Systems (TEWS). These aviation wash systems are designed for use in the hangar or on the ramp, giving maintenance teams flexibility in where and how they service turbine engines. Both TEWS units are built with hardline pipes and bulkhead fittings for durability. They also come with a 25-foot hose and two five-gallon fluid tanks. Fluids can be channeled from either the solution or water tank with the valve on the front plate.
TW60 vs. TW60AT
The TW60 Turbine Engine Wash System uses shop air as its source. Meanwhile, the TW60AT Turbine Engine Wash System comes with its own five-gallon compressed air tank unit but can also operate with shop air as its source.
POWERALL SYSTEMS PORTABLE GROUND POWER UNITS (GPU)
PowerAll Systems Portable Ground Power Units are versatile, hybrid units that can be used for both Starting Procedures via on-board Maintenance Free, Non-Hazmat AGM Lead Acid Batteries, and Maintenance Operations, providing continuous power while plugged in to a 110/220 Single Phase AC Source. All of our GPUs come complete with 8ft DC Cables, 6ft AC Cables, and separate carts with pneumatic wheels for ease of handling in the hangar environment.
PAS-2400WEIGHT
PA-2400 GPU 86 LBS
DC POWER CABLE 8.5 LBS
DC POWER CABLE .4 LBS
INPUT POWER AC
120 VOLTS AC 15.0 AMPS MAX
220 VOLTS (SINGLE PHASE) 15.0 AMPS MAX
OUTPUT POWER DC
POWER CELLS 24VDC
PEAK OUTPUT 2400 AMPS
CONTINUOUS 25 AMPS
WITH AC POWER 28.5+ VDC
WITHOUT AC POWER 25 VDC
POWER CELL
DRY CELL AGM LEAD ACID
HIGH DISCHARGE RATE
FAST RECHARGE
MAINTENANCE FREE
DC POWER CABLE
LENGTH 8FT
AIRCRAFT CONNECTOR 3 PIN RECEPTICLE
PAS-2400-50WEIGHT
PA-2400 GPU 94 LBS
DC POWER CABLE 8.5 LBS
DC POWER CABLE .4 LBS
INPUT POWER AC
120 VOLTS AC 20.0 AMPS MAX
220 VOLTS (SINGLE PHASE) 20.0 AMPS MAX
OUTPUT POWER DC
POWER CELLS 24VDC
PEAK OUTPUT 2400 AMPS
CONTINUOUS 25 AMPS
WITH AC POWER 28.5+ VDC
WITHOUT AC POWER 25 VDC
POWER CELL
DRY CELL AGM LEAD ACID
HIGH DISCHARGE RATE
FAST RECHARGE
MAINTENANCE FREE
DC POWER CABLE
LENGTH 8FT
AIRCRAFT CONNECTOR 3 PIN RECEPTICLE
Our versatile 'Dual Unit' GPUs are can be split apart and used separately with the purchase of an additional DC Cable and optional Single Cart.
PAS-4500WEIGHT
PA-2400 GPU (2x) 86 LBSX2 = 172 LBS.
DC POWER CABLE 8.5 LBS
DC POWER CABLE .4 LBS
INPUT POWER AC
120 VOLTS AC 20.0 AMPS MAX
220 VOLTS (SINGLE PHASE) 20.0 AMPS MAX
OUTPUT POWER DC
POWER CELLS 24VDC
PEAK OUTPUT 4500 AMPS
CONTINUOUS 50 AMPS
WITH AC POWER 28.5+ VDC
WITHOUT AC POWER 25 VDC
POWER CELL
DRY CELL AGM LEAD ACID
HIGH DISCHARGE RATE
FAST RECHARGE
MAINTENANCE FREE
DC POWER CABLE
LENGTH 8FT
AIRCRAFT CONNECTOR 3 PIN RECEPTICLE
PAS-4500-100WEIGHT
PA-2400-50 GPU (96LBSX2) 170 LBS
DC POWER CABLE 8.5 LBS
DC POWER CABLE .4 LBS
INPUT POWER AC
120 VOLTS AC 20.0 AMPS MAX
220 VOLTS (SINGLE PHASE) 20.0 AMPS MAX
OUTPUT POWER DC
POWER CELLS 24VDC
PEAK OUTPUT 4500 AMPS
CONTINUOUS 100 AMPS
WITH AC POWER 28.5+ VDC
WITHOUT AC POWER 25 VDC
POWER CELL
DRY CELL AGM LEAD ACID
HIGH DISCHARGE RATE
FAST RECHARGE
MAINTENANCE FREE
DC POWER CABLE
LENGTH 8FT
AIRCRAFT CONNECTOR 3 PIN RECEPTICLE
Dual Unit GPUs
